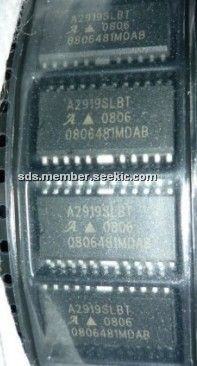

A2919SLBTR-T

motor driver, 45 V, 750 mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.76~0.88 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.76~0.88

PartNumber:: A2919SLBTR-T

Brand:: Allegro MicroSystems - Allegro | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sendy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-08

From Other Seller

Part Number:A2919SLBTR-T
US $0.76 - 0.88
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
AT45DB161B-TU

US $1.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The A2919SLBTR-T motor driver is designed to drive both windings of a bipolar stepper motor or bidirectionally control two dc motors. The bridges include both ground clamp and flyback diodes for protection against inductive transients. Internally generated delays prevent crossover currents when switching current direction. Special power-up sequencing is not required. Thermal protection circuitry disables the outputs if the chip temperature exceeds safe operating limits. The A2919SLBTR-T is supplied in a 24-lead surface-mountable SOIC. Their batwing construction provides for maximum package power dissipation in the smallest possible construction.

Parametrics

A2919SLBTR-T absolute maximum ratings: (1)Motor Supply Voltage, VBB : 45 V; (2)Output Current, IOUT (Peak, tw ≤ 20 μs): ±1.0 A; (3)(Continuous): ±750 mA; (4)Logic Supply Voltage, VCC : 7.0 V; (5)Logic Input Voltage Range, VIN : -0.3 V to VCC+0.3 V; (6)Output Emitter Voltage, VE : 1.5 V; (7)Package Power Dissipation, PD : See Graph; (8)Operating Temperature Range, TA : -20°C to +85°C; (9)Storage Temperature Range, TS : -55°C to +150°C.

Features

A2919SLBTR-T features: (1)750 mA Continuous Output Current; (2)45 V Output Sustaining Voltage; (3)Internal Clamp Diodes; (4)Internal PWM Current Control; (5)Low Output Saturation Voltage; (6)Internal Thermal Shutdown Circuitry; (7)Half- or Quarter-Step Operation of Bipolar Stepper Motors.
