Product Summary
The AD524AD is a precision monolithic instrumentation amplifier designed for data acquisition applications requiring high accu- racy under worst-case operating conditions. An outstanding combination of high linearity, high common-mode rejection, low offset voltage drift, and low noise makes the AD524AD suitable for use in many data acquisition systems. As a complete amplifier, the AD524AD does not require any exter- nal components for fixed gains of 1, 10, 100 and 1000. For other gain settings between 1 and 1000, only a single resistor is required. The AD524AD input is fully protected for both power-on and power-off fault conditions.
Parametrics
AD524AD absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Internal Power Dissipation: 450 mW; (3)Input Voltage (Either Input Simultaneously)|VIN| + |VS|: <36 V; (4)Storage Temperature Range: -65℃ to +125℃; (5)Operating Temperature Range: -25℃ to +85℃; (6)Lead Temperature (Soldering, 60 sec): +300℃.
Features
AD524AD features: (1)Low noise: 0.3 μV p-p at 0.1 Hz to 10 Hz; (2)Low nonlinearity: 0.003% (G = 1); (3)High CMRR: 120 dB (G = 1000); (4)Low offset voltage: 50 μV Low offset voltage drift: 0.5 μV/℃; (5)Gain bandwidth product: 25 MHz; (6)Pin programmable gains of 1, 10, 100, 1000; (7)Input protection, power-on/power-off; (8)No external components required; (9)Internally compensated; (10)MIL-STD-883B and chips available 16-lead ceramic; (11)DIP and SOIC packages and 20-terminal leadless chip carrier available; (12)Available in tape and reel in accordance with EIA-481A standard; (13)Standard military drawing also available.

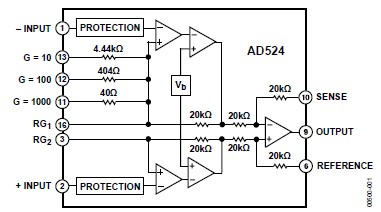

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD524AD |
|
IC AMP INST 1MHZ PREC LN 16CDIP |
Data Sheet |
|
|
||||||||||||||||
|
AD524ADZ |
|
IC AMP INST 1MHZ PREC LN 16CDIP |
Data Sheet |
|
|
||||||||||||||||
