Product Summary
The AD7524JN is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors. Basically an 8-bit DAC with input latches, the AD7524JN load cycle is similar to the write cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the AD7524JN provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts. Excellent multiplying characteristics (2- or 4-quadrant) make the AD7524JN an ideal choice for many microprocessor controlled gain setting and signal control applications.
Parametrics
AD7524JN absolute maximum ratings: (1)VDD to GND: –0.3 V, +17 V; (2)VRFB to GND: ±25 V; (3)VREF to GND: ±25 V; (4)Digital Input Voltage to GND: –0.3 V to VDD +0.3 V; (5)OUT1, OUT2 to GND: –0.3 V to VDD +0.3 V; (6)Power Dissipation (Any Package)To +75℃: 450 mW; (7)Operating Temperature: –40℃ to +85℃; (8)Storage Temperature: –65℃ to +150℃; (9)Lead Temperature (Soldering, 10 secs): +300℃.
Features
AD7524JN features: (1)Microprocessor Compatible (6800, 8085, Z80, Etc.); (2)TTL/CMOS Compatible Inputs; (3)On-Chip Data Latches; (4)Endpoint Linearity; (5)Low Power Consumption; (6)Monotonicity Guaranteed (Full Temperature Range); (7)Latch Free (No Protection Schottky Required).

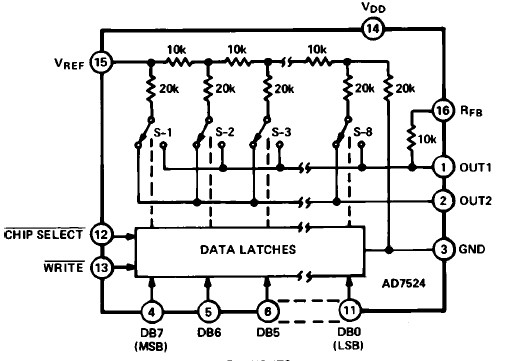

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7524JN |
|
IC DAC 8BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
|
AD7524JNZ |
|
IC DAC 8BIT MULTIPLYING 16-DIP |
Data Sheet |
|
|
||||||||||||||||||
