Product Summary
The ADM8513X-AD-T-1 is a 10/100 MBPS ethernet lan controller.
Parametrics
ADM8513X-AD-T-1 absolute maximum ratings: (1)Supply Voltage (VDD): 4.6V; (2)DC Input Voltage (VIN): 6V; (3)DC Output Voltage (VOUT)Power Comsumption: 126mA @ Idle state 7mA @ Suspend Mode, 142mA @ 10M Full Duplex Mode, 152 mA @ 100M Full Duplex Mode; (4)Storage Temperature: -65 to 150℃; (5)Operation Temperature: -40 to 125℃; (6)ESD Rating: 2000V.
Features
ADM8513X-AD-T-1 features: (1)IEEE 802.3/802.3u 10Base-T/100Base-Tx compliant; (2)Support for IEEE 802.3x flow control; (3)Support Auto-Negotiation for 10Base-T and 100Base-Tx; (4)Supports 4 endpoints: 1 control endpoint with maximum 8-byte packet, 1 bulk IN endpoint with maximum 64-byte packet, 1 bulk OUT endpoint with maximum 64-byte packet and 1 interrupt IN endpoint with maximum 8-byte packet; (5)Provide serial interface to access 93c46 EEPROM; (6)Automatically load device ID, vendor ID from EEPROM after power-on reset; (7)Provide MLT-3 transceiver with DC restoration for Base-Line wander; (8)Support external transmit/receive transformer with turn ration 1: 1.

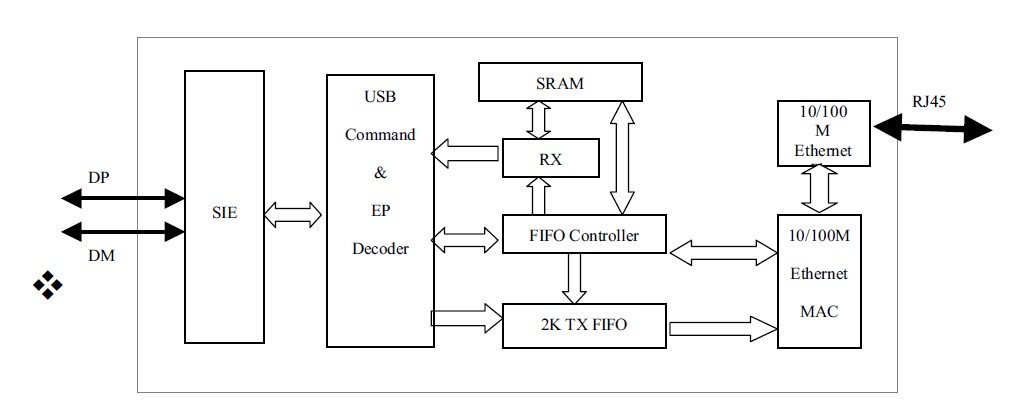

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM8513X-AD-T-1 |
Infineon Technologies |
Network Controller & Processor ICs WIRED NIC |
Data Sheet |
Negotiable |
|
||||||
