Product Summary

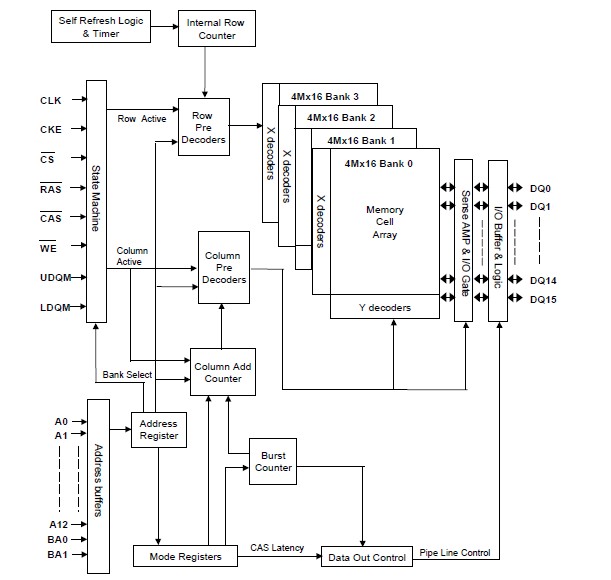

The HY57V561620FTP-H-C is a CMOS Synchronous DRAM, ideally suited for the main memory applications which require large memory density and high bandwidth. The HY57V561620FTP-H-C is organized as 4 banks of 4,194,304x16. The HY57V561620FTP-H-C is offering fully synchronous operation referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth. All input and output voltage levels are compatible with LVTTL.

Parametrics

HY57V561620FTP-H-C absolute maximum ratings: (1)Ambient Temperature TA: 0 ~ 70 ℃; (2)Storage Temperature TSTG: -55 ~ 125 ℃; (3)Voltage on Any Pin relative to VSS VIN, VOUT: -1.0 ~ 4.6 V; (4)Voltage on VDD relative to VSS VDD, VDDQ: -1.0 ~ 4.6 V; (5)Short Circuit Output Current IOS: 50 mA; (6)Power Dissipation PD: 1 W; (7)Soldering Temperature × Time TSOLDER: 260 × 10 ℃ × Sec.

Features

HY57V561620FTP-H-C features: (1)Single 3.3V ± 0.3V power supply; (2)All device pins are compatible with LVTTL interface; (3)JEDEC standard 400mil 54pin TSOP-II with 0.8mm of pin pitch; (4)All inputs and outputs referenced to positive edge of system clock; (5)Data mask function by UDQM and LDQM; (6)Internal four banks operation; (7)Auto refresh and self refresh; (8)8192 refresh cycles / 64ms; (9)Programmable Burst Length and Burst Type; (10)Programmable CAS Latency; 2, 3 Clocks.
