Product Summary
The LT1510-5CGN is a current mode PWM battery charger.The LT1510-5CGN is the smallest, simplest, most efficient solution to fast-charge modern rechargeable batteries including lithium-ion (Li-Ion), nickelmetal- hydride (NiMH)* and nickel-cadmium (NiCd) that require constant-current and/or constant-voltage charging. The LT1510-5CGN is capable of delivering 1.5A DC current (2A peak current). The 0.1W onboard current sense resistor makes the charging current programming very simple. One resistor (or a programming current from a DAC) is required to set the full charging current (1.5A) to within 5% accuracy. The LT1510-5CGN with 0.5% reference voltage accuracy meets the critical constant-voltage charging requirement for lithium cells.
Parametrics
LT1510-5CGN absolute maximum ratings: (1)Supply Voltage (VMAX): 30V; (2)Switch Voltage with Respect to GND: –3V; (3)Boost Pin Voltage with Respect to VCC: 30V; (4)Boost Pin Voltage with Respect to GND: –5V; (5)VC, PROG, OVP Pin Voltage: 8V; (6)IBAT (Average): 1.5A; (7)Switch Current (Peak): 2A; (8)Storage Temperature Range: –65℃ to 150℃.
Features
LT1510-5CGN features: (1)Charges NiCd, NiMH and Lithium-IoBatteries –– Only One 1/10W Resistor Is Needed to Program Charging Current; (2)High Efficiency Current Mode PWM with 1.5A Internal Switch and Sense Resistor; (3)3% Typical Charging Current Accuracy; (4)Precisio0.5% Voltage Reference for Voltage Mode Charging or Overvoltage Protection; (5)Current Sensing CaBe at Either Terminal of the Battery; (6)Low Reverse Battery DraiCurrent: 3mA; (7)Charging Current Soft Start; (8)ShutdowControl; (9)500kHz VersioUses Small Inductor.

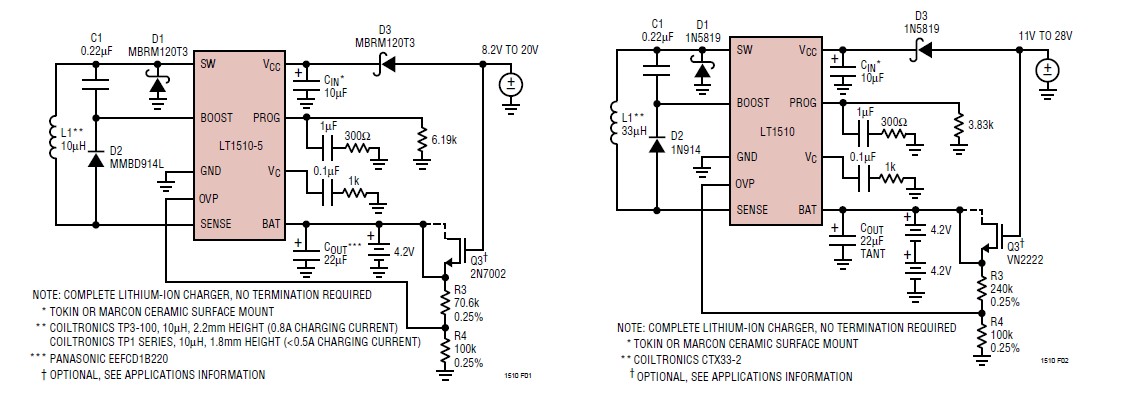

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LT1510-5CGN |
|
IC BATT CHARGER CONST V/I 16SSOP |
Data Sheet |
|
|
||||||||||
|
LT1510-5CGN#PBF |
|
IC BATT CHARGER CONST V/I 16SSOP |
Data Sheet |
|
|
||||||||||
|
LT1510-5CGN#TR |
|
IC CHARGER BATT CONST V/I 16SSOP |
Data Sheet |
|
|
||||||||||
|
LT1510-5CGN#TRPBF |
|
IC BATT CHARGER CONST V/I 16SSOP |
Data Sheet |
|
|
||||||||||
