Product Summary
The LTC1453CS8 is a complete single supply, rail-to-rail voltage output 12-bit digital-to-analog converter (DAC) in an SO-8 package. The LTC1453CS8 includes an output buffer amplifier and an easy-to-use 3-wire cascadable serial interface. The low power supply current makes the LTC1453CS8 ideal for battery-powered applications. The space saving 8-pin SO package and operation with no external components provide the smallest 12-bit DAC system available.
Parametrics
LTC1453CS8 absolute maximum ratings: (1)VCC to GND: – 0.5V to 7.5V; (2)TTL Input Voltage: – 0.5V to 7.5V; (3)VOUT, DOUT: –0.5V to VCC + 0.5V; (4)REF: –0.5V to VCC + 0.5V; (5)Maximum Junction Temperature: –65°C to 125°C; (6)Operating Temperature Range Commercial: 0°C to 70°C, Industrial: –40°C to 85°C; (7)Storage Temperature Range: – 65°C to 150°C; (8)Lead Temperature (Soldering, 10 sec): 300°C.
Features
LTC1453CS8 features: (1)12-Bit Resolution; (2)Buffered True Rail-to-Rail Voltage Output; (3)3V Operatio(LTC1453), ICC: 250mA Typ; (4)5V Operatio(LTC1451), ICC: 400mA Typ; (5)3V to 5V Operatio(LTC1452), ICC: 225mA Typ; (6)Built-IReference: 2.048V (LTC1451)1.220V (LTC1453); (7)Multiplying Versio(LTC1452); (8)Power-OReset; (9)SO-8 Package; (10)3-Wire Cascadable Serial Interface; (11)Maximum DNL Error: 0.5LSB; (12)Schmitt Trigger oClock Input Allows Direct Optocoupler Interface.:

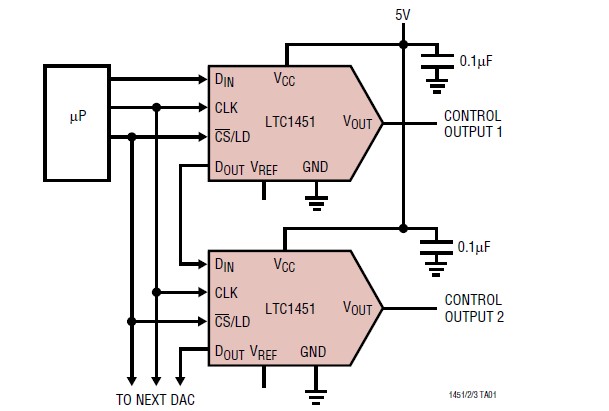

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC1453CS8 |
|
IC D/A CONV 12BIT R-R 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1453CS8#PBF |
|
IC D/A CONV 12BIT R-R 8-SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1453CS8#TR |
|
IC DAC 12BIT R-R SINGLE 3V 8SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1453CS8#TRPBF |
|
IC D/A CONV 12BIT R-R 8-SOIC |
Data Sheet |
|
|
||||||||||
