MAX809RTRG

3-Pin microprocessor reset monitor, 6.0 V, 20 mA, 140 ms, MAX809RTRG

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.12 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.12

PartNumber:: MAX809RTRG

Brand:: ON Semiconductor - ON | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. sendy's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-09

From Other Seller

Part Number:MAX809RTRG
US $0.10 - 0.12
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

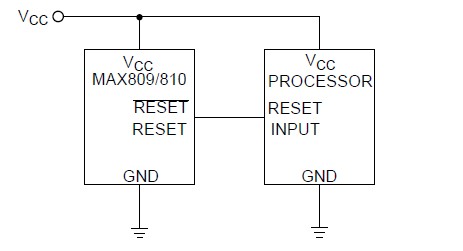

The MAX809RTRG is a very low supply current 3-Pin microprocessor reset monitor designed to monitor VCC in digital systems and provide a reset signal to the host processor when necessary. No external components are required. The reset output is driven active within 10 μsec of VCC falling through the reset voltage threshold. Reset is maintained active for a timeout period which is trimmed by the factory after VCC rises above the reset threshold. The MAX810 has an active-high RESET output while the MAX809RTRG has an active-low RESET output. The MAX809RTRG is available in SOT-23 and SC-70 packages.

Parametrics

MAX809RTRG absolute maximum ratings: (1)Power Supply Voltage (VCC to GND)VCC: -0.3 to 6.0 V; (2)RESET Output Voltage (CMOS):-0.3 to (VCC + 0.3)V; (3)Input Current, VCC: 20 mA; (4)Output Current, RESET: 20 mA; (5)Operating Junction Temperature Range TJ: -40 to +105 ℃; (6)Storage Temperature Range Tstg: -65 to +150 ℃; (7)Lead Temperature (Soldering, 10 Seconds)Tsol: +260 ℃.

Features

MAX809RTRG features: (1)Precision VCC Monitor for 1.5 V, 1.8 V, 2.5 V, 3.0 V, 3.3 V, and 5.0 V Supplies; (2)Precision Monitoring Voltages from 1.2 V to 4.9 V Available in 100 mV Steps; (3)Four Guaranteed Minimum Power-On Reset Pulse Width Available (1 ms, 20 ms, 100 ms, and 140 ms); (4)RESET Output Guaranteed to VCC = 1.0 V.; (5)Low Supply Current; (6)Compatible with Hot Plug Applications; (7)VCC Transient Immunity; (8)No External Components; (9)Wide Operating Temperature: -40℃ to 105℃; (10)Pb-Free Packages are Available.
