Product Summary

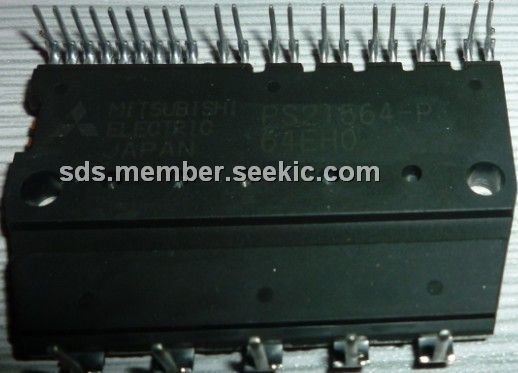

The PS21564-P is a dual-in-line package intelligent power modules.
Parametrics
PS21564-P absolute maximum ratings: (1)VCES: 600V; (2)Applicable Motor Ratings: 0.75KW; (3)IC: 15A; (4)fC: 20KHZ; (5)Isolation Voltage: 2500V.
Features
PS21564-P features: (1)Employing 5th generation planar IGBT chips with 0.6μm design rule or CSTBT technology with superior loss performance; (2)Ultra compact dual or single-in-line transfer mold package (compatible with 2nd generation); (3)Including driver and protection circuitry (UV, SC); (4)DIP-IPM with reduction of thermal resistance by 20%; (5)2500Vrms isolation voltage; (6)High-active interface logic for direct connection to a 3V or 5V MCU; (7)Highest reliability and optimised EMI performance; (8)Available from 3A to 50A / 600V for motor ratings from 0.1kW to 3.7kW; (9)Optional with open emitter topology for vector control; (10)All Mitsubishi DIP and Mini-DIP-IPMs have lead-free terminals; (11)From January 2006 onwards, all DIP and Mini-DIP-IPMs will be supplied with completely lead-free technology.

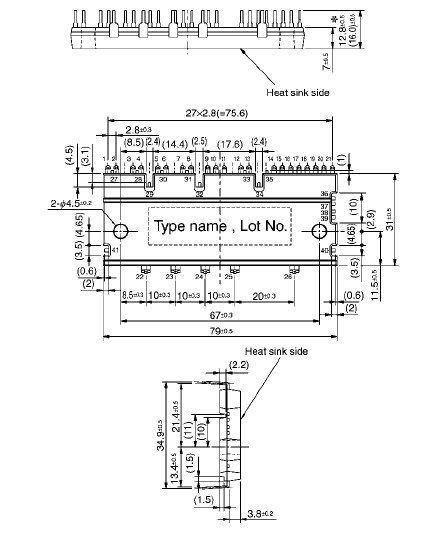

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS21564-P |
|
MOD IPM 600V 15A MINI DIP |
Data Sheet |
Negotiable |
|
||||
