Product Summary

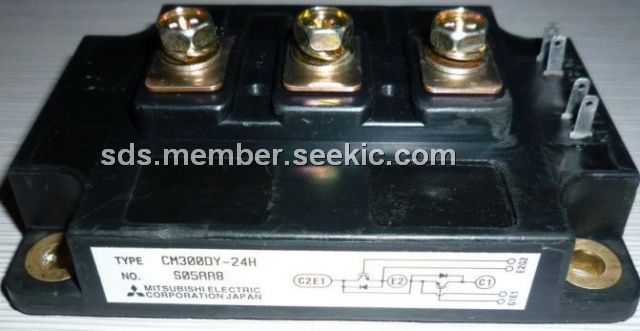

The CM300DY-24H is a Mitsubishi IGBT Module. The CM300DY-24H is designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
CM300DY-24H absolute maximum ratings: (1)Junction Temperature Tj: –40 to 150 ℃; (2)Storage Temperature Tstg: –40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT)VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT)VGES: ±20 Volts; (5)Collector Current (TC = 25℃)IC: 300 Amperes; (6)Peak Collector Current ICM: 600Amperes; (7)Emitter Current(TC = 25℃)IE: 300 Amperes; (8)Peak Emitter Current IEM: 600Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj £ 150℃)Pc: 2100 Watts.
Features
CM300DY-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

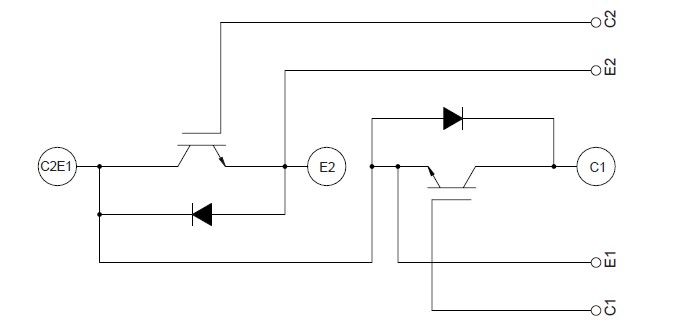

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM300DY-24H |
|
IGBT MOD DUAL 1200V 300A H SER |
Data Sheet |
Negotiable |
|
||||||
