Product Summary

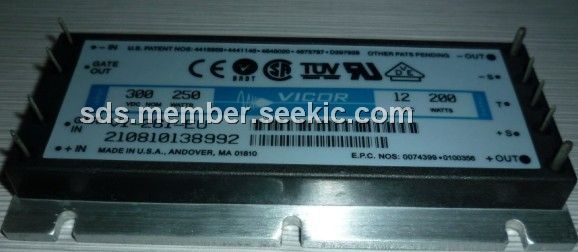

The VI-261-EU is a battery charger current source module. The VI-261-EU industry standard package with the flexibility of a power converter whose output voltage and output current may be independently set. BatMods allow the user to independently program a constant output current and a maximum float voltage. The float voltage is the point at which the BatMod transitions from constant current to constant voltage. These features make the VI-261-EU an ideal candidate for battery charging and other applications which require a controlled current source. The VI-261-EU is also available in booster versions that enable the designer to create systems capable of multiple kilowatts of output power.
Parametrics
VI-261-EU absolute maximum ratings: (1)Nominal Input Voltage: 48Vdc, 150Vdc; (2)Output Current: 0-14.5A; (3)Current Control Input: 1V to 5V; (4)Current Monitor Output: 1V to 5V; (5)Voltage Control Input: 0V to 2.5V; (6)Output Voltage Setpoint: 15V, 30V, 60V +/-1%; (7)Operating Temp./Storage Temp.: -10℃ to +85℃, -20℃ to +100℃.
Features
VI-261-EU features: (1)Programmable Output Current; (2)Booster Versions Available; (3)Size: 4.6 x 2.4 x 0.5 (116,8 x 61,0 x 12,7); (4)UL, CSA, TÜV; (5)Compatible with All Major Battery Types; (6)Inputs: 48, 150, 300Vdc; (7)Outputs: 12, 24, 48Vdc Nom.; (8)Analog Current Monitor; (9)Analog Overvoltage Adjust; (10)CE Marked.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 VI-261-EU |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-EU-B1 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-EU-F1 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-EU-F2 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-EU-F3 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-EU-F4 |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
|
VI-261-EU-S |
|
CONVERTER MOD DC/DC 12V 200W |
Data Sheet |
|
|
||||||
