Product Summary

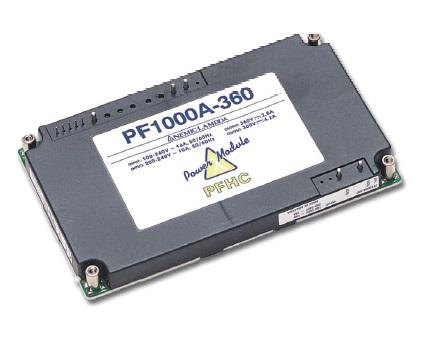

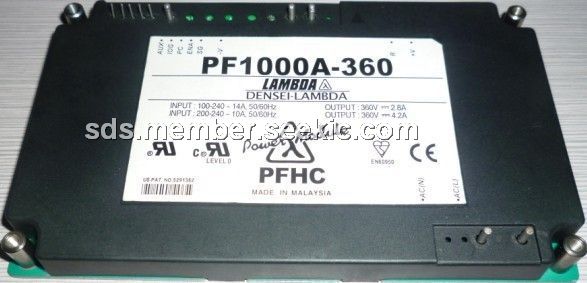

The PF1000A-360 is a PFHC module.

Parametrics

PF1000A-360 absolute maximum ratings: (1)Input voltage range: 85 ~ 265VAC (50/60Hz)PFHC range: 85 ~ 255VAC (50/60Hz); (2)Output voltage/current: 85 ~ 265VAC input: DC360V 2.8A 1008W, 170 ~ 265VAC input: DC360V 4.2A 1512W; (3)Baseplate temperature: –20 ~ +85℃; (4)Ambient temperature: above –20℃.

Features

PF1000A-360 features: (1)PFHC module Conforms to IEC 1000-3-2, High power factor: 0.95, high efficiency: 90%, Input: 85 ~ 265VAC, Output: 500, 1000W; (2)Wide baseplate temperature: –20 ~ +85℃ Conduction cooling; (3)Provided in-rush current limiting; (4)N+1 parallel redundant operation; (5)2 year warranty.

Diagrams

PF1000A-360 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PF1000A-360
PF1000A-360
TDK-Lambda
Linear and Switching Power Supplies 1008W 360V 2.8A 360Vdc 2.8A
Data Sheet
0-1: $130.92
1-10: $122.46
