Product Summary

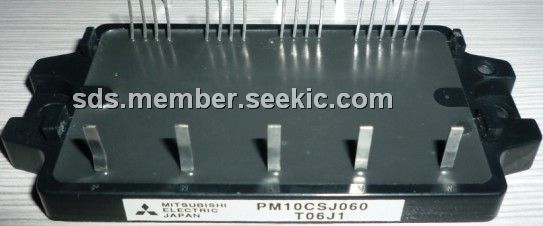

The PM10CSJ060 is a Mitsubishi Intelligent Power Module. The PM10CSJ060 is isolated base modules designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices.

Parametrics

PM10CSJ060 absolute maximum ratings: (1)Power Device Junction Temperature Tj: -20 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Case Operating Temperature TC: -20 to 100 ℃; (4)Mounting Torque, M4 Mounting Screws: 0.98 ~ 1.47 N · m; (5)Module Weight (Typical): 60 Grams; (6)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part)VCC(prot.): 400 Volts; (7)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.)Viso: 2500 Vrms.

Features

PM10CSJ060 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic Short Circuit, Over Current, Over Temperature, Under Voltage.

Diagrams

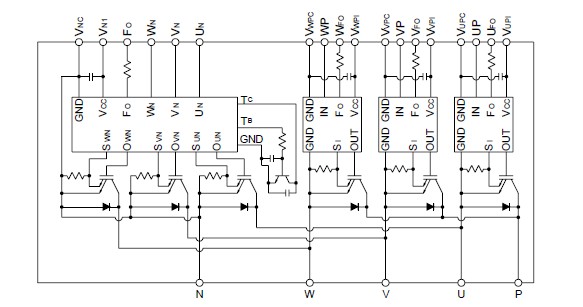

PM10CSJ060 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PM10CSJ060
PM10CSJ060

MOD IPM 6PAC 600V 10A
Data Sheet
Negotiable
